PRODUCT FEATURES
- More stable ceiling as compared to others.
- Provide the ceiling a linear, clean and sleek look as per modern aesthetics.
- Compatible with most of the light fixtures available.
- Can be used in combination of two different width strips, making the ceiling more attractive.
- Provide flexibility to customize designs.
- Available in R&C type panels.
TECHNICAL DETAILS
SPECIFICATION OF R-SHAPED STRIP
- Specification
- Thickness of base panel
- width
- height
- length
- 50R
- Recommendation
- 50
- 18
- Customized
- 100R
- Recommendation
- 100
- 18
- Customized
- 125R
- Recommendation
- 125
- 18
- Customized
- 175R
- Recommendation
- 175
- 18
- Customized
- 200R
- Recommendation
- 200
- 18
- Customized
- 25 Fastner bar
- Recommendation
- 25
- 18.5
- Customized
Legend
Material: Aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements.

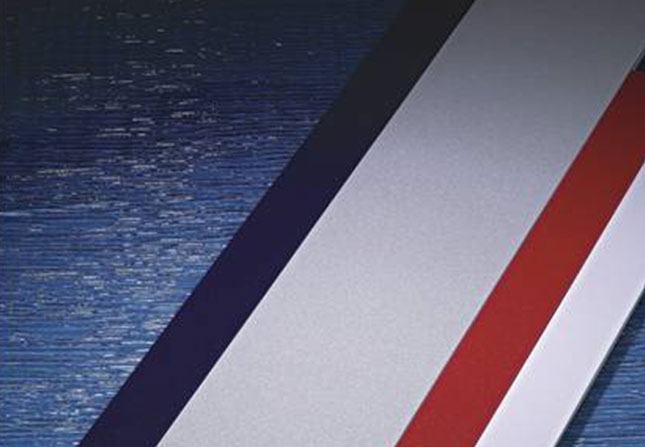

Surface: Powder coating (ordinary powder, polyster), rolling, laminating, metal anode oxidation treatment.

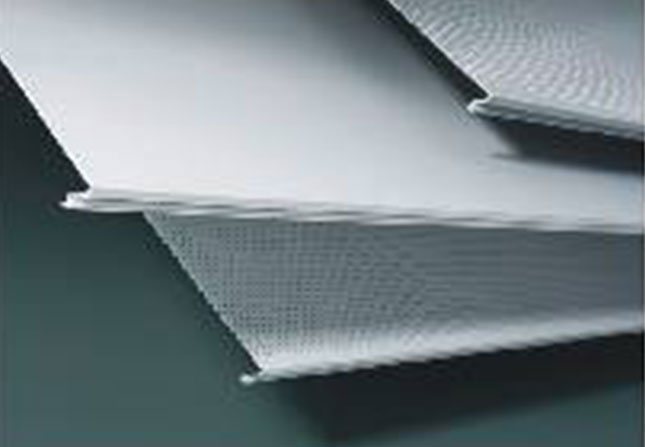

Coating: Plain panel or punching panel according to the actual requirements.

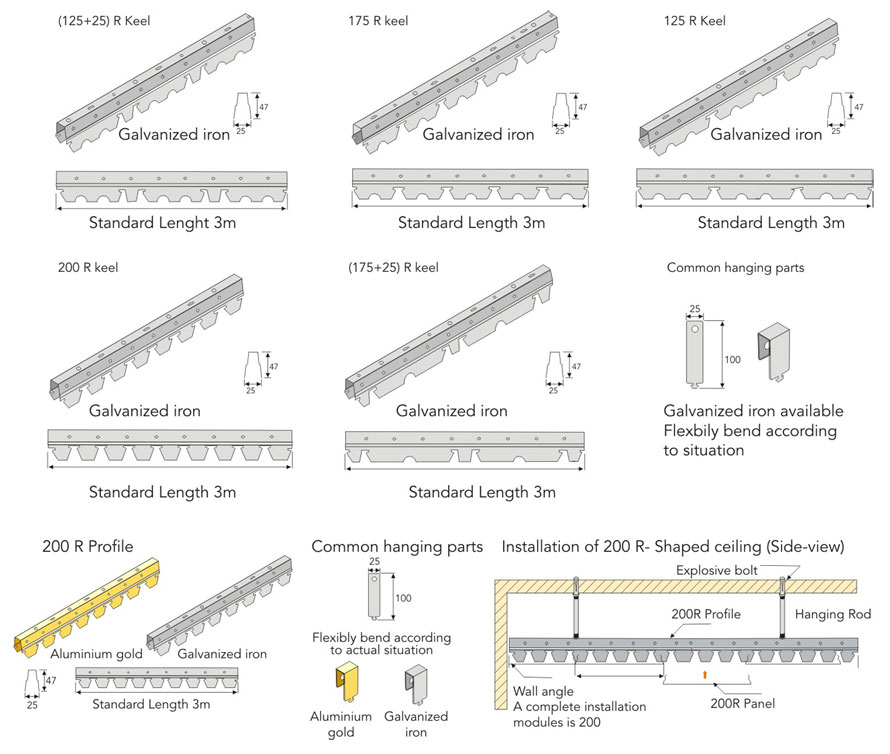

Parameters for material calculation
- Production Specification
- Base Thickness (mm)
- Accessories Per square meter
- 125
175
200 - 0.45 - 0.7
0.5 - 0.65
0.7 - 0.8
Keel 1m Hanging 1
Note: Non-series products can be customized according to the actual production.

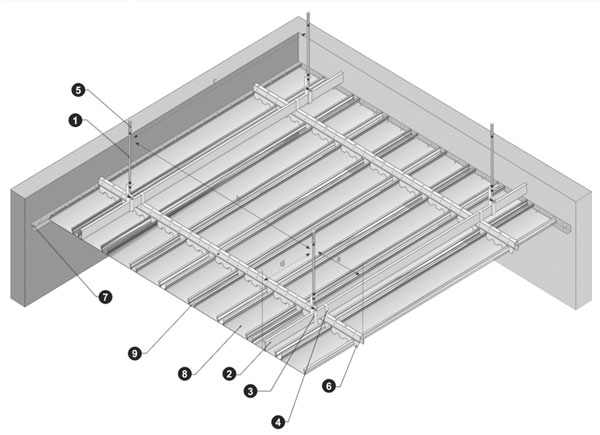

Guidelines for Installation
- 1. Hanging pole
- 2. C channel
- 3. Hanging part of C channel
- 4. Common hanging parts
- 5. Explosive bolt
- 6. R-shaped profile
- 7. Wall angle
- 8. R-shaped panel
- 9. 25 Fastener bar
SCOPE OF APPLICATION
- Suitable to use in Industrial Areas, Petrol Pump's Canopies, Toll plazas etc.
- Public Areas like Railway/Metro Station, Subways, Airport, Bus Stations, Community Centre etc.
- Offices, Library, Meeting Rooms

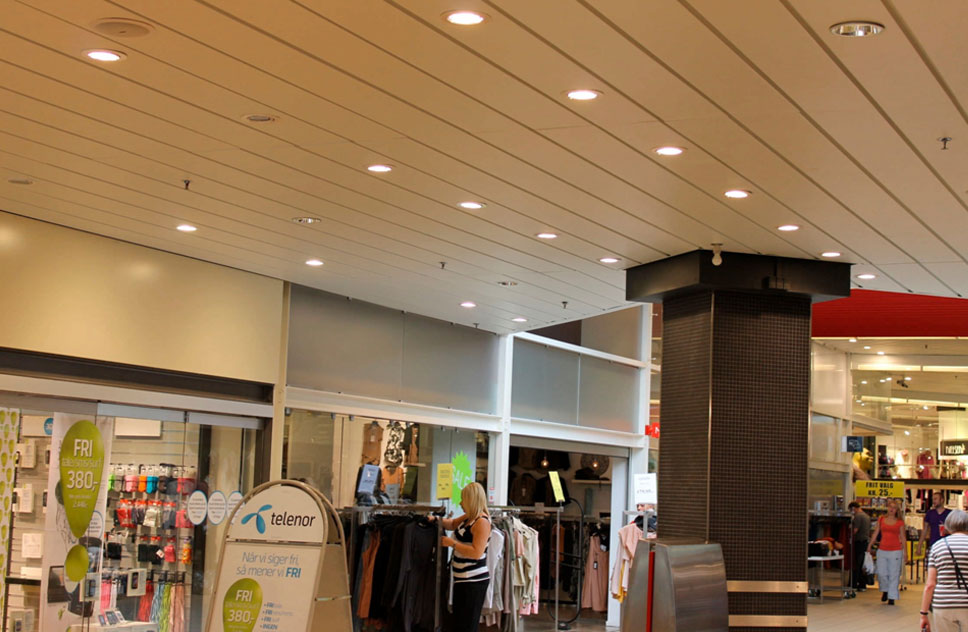

- Retail Stores, Shopping Malls, Corridors, Lobbies of Big Buildings like Hotels etc.
- Some parts of residential areas
