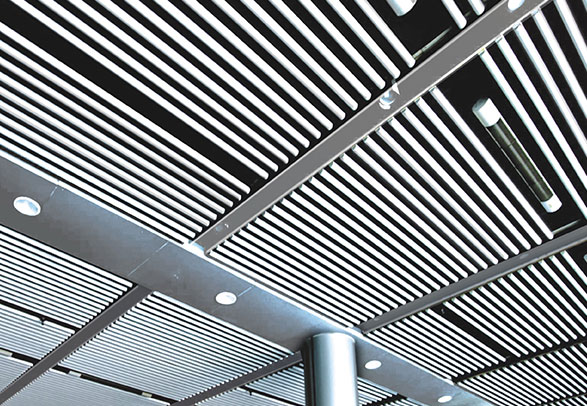

Round Pipe
PRODUCT FEATURES
- Recently introduced product in false ceiling and preferred by more & more people.
- Easy Installation and removal, hence making maintenance of service lines going through the plenum, easy.
- Provide the ceiling an open, linear, clean soft & sleek look as per modern aesthetics.
- Compatible with most of the light fixtures available.
- Serves as good ventilation system.
- Provides flexibility to customize designs.
TECHNICAL DETAILS
SPECIFICATION OF PIPE
- Diameter
- THICKNESS
- length
- height
50mm
0.7-1.0mm
(Aluminium)Customized
57mm
Legend
Parameters for material calculation
- Distance in mm c/c
- Keel/Profile in Rm/Sq.m
- Pipes in Rm/Sq.m
- 50
- 1
- 20
- 100
- 1
- 10
- 150
- 1
- 6.67
- 200
- 1
- 5

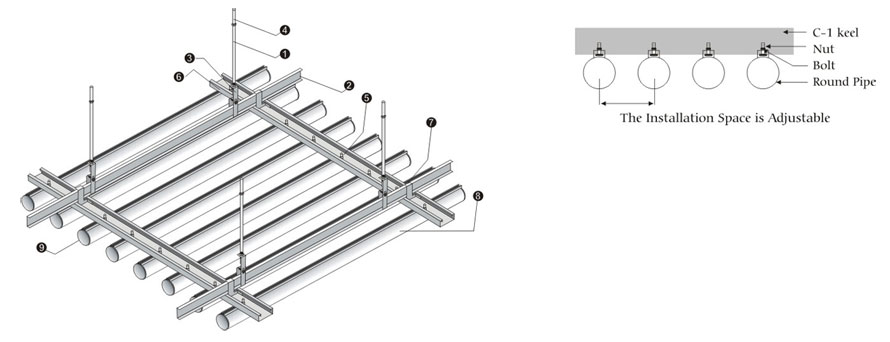

Guidelines for Installation
- 1. Hanging pole
- 2. 38 main keel
- 3. Hanging parts of 38 main keel
- 4. Explosive bolt
- 5. Bolt and nut

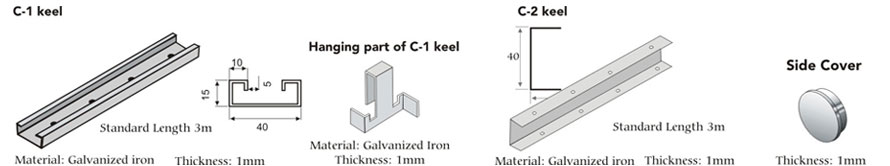

- 6. C-1 keel
- 7. Hanging parts of C-1 keel
- 8. Round pipe
- 9. Side cover
- Brush the facilities on the suspended rod into black.
- Lift the 38 main keel with hanging pole, exposive bolt and 38 main hanger.
- Connect the C-1 keel and the upper 38 main keel with C-1 hanger, adjust the whole hanging system to level.
- Fix the box curtain body onto the C-1 keel with bolts and caps.

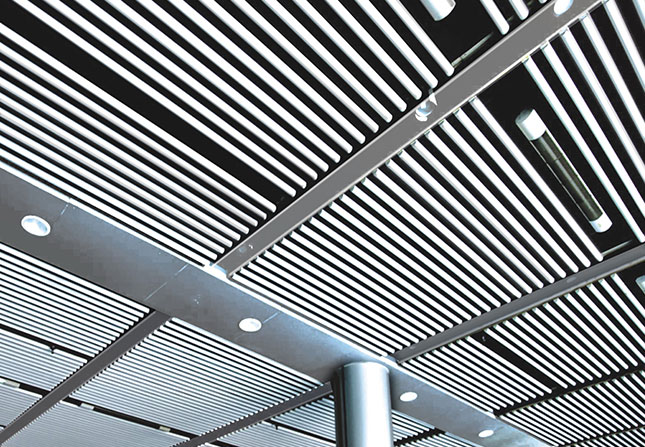

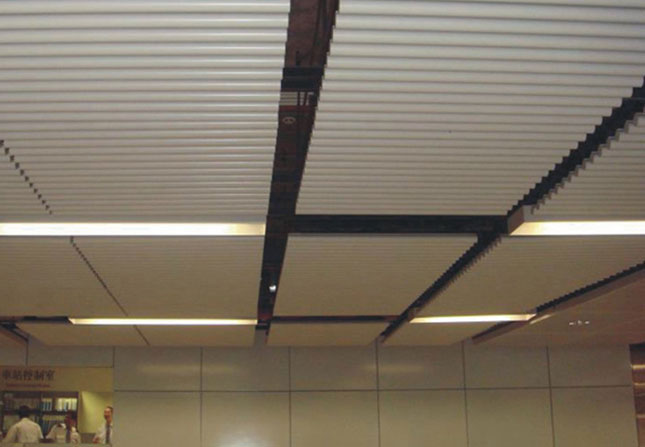

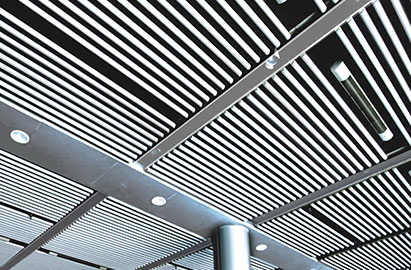

SCOPE OF APPLICATION
- Public Areas like Railway Station, Subways, Airport, Bus Stations, Community Centre etc.
- Reception areas of Offices, Corridors
- Retail Stores, Shopping Malls, Lobbies of Big Buildings like Hotels etc.
