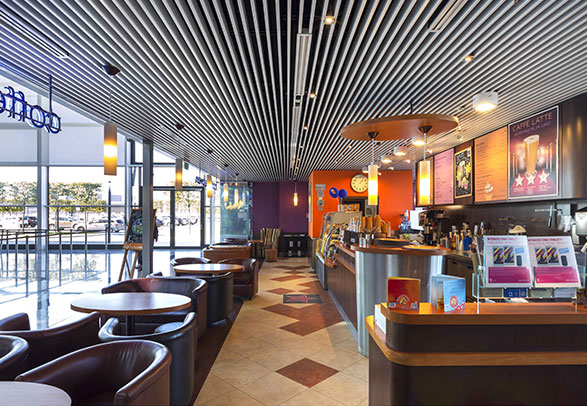

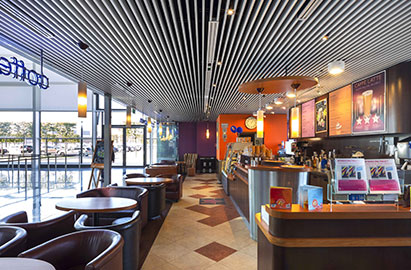

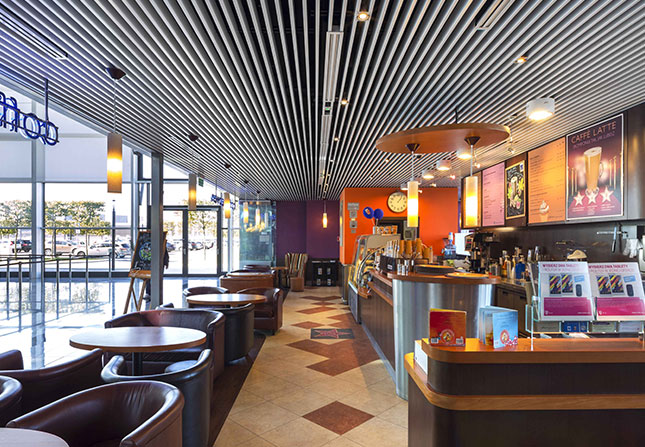

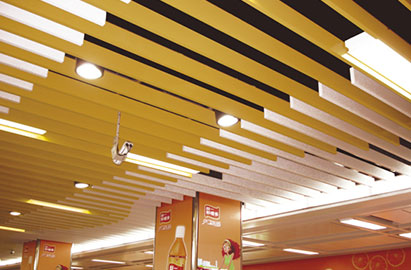

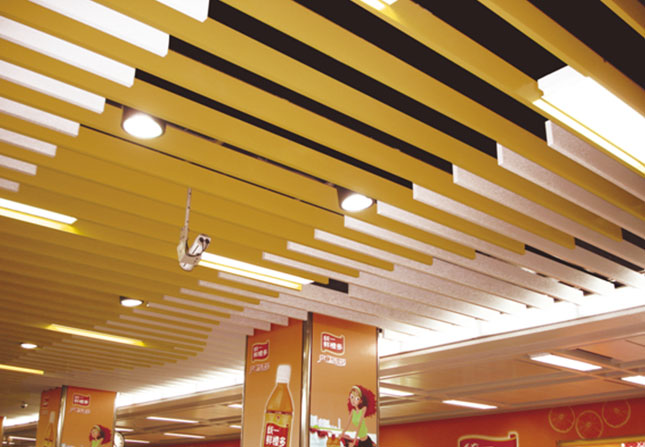

PRODUCT FEATURES
- Provide the ceiling an open, linear, clean and high tech look as per modern aesthetics.
- Can be fixed and removed very easily for accessibility to plenum.
- Compatible with most of the light fixtures available.
- Serves as good ventilation system.
- Provide flexibility to customize designs.
- Available in closed and open types.
- Better stability as the baffles are attached to the profiles with the help of nuts and bolts.
- Also available in wooden finish.
TECHNICAL DETAILS
Specification of closed baffle
- MATERIAL
- THICKNESS
- FINISH
- width in
mm (w) - height in
mm (h) - length in
mm (l)
Aluminium Alloy
0.90 to 1.5
Powder Coated, PVDF etc.25
30
40
50
80
100
150
200
3000 (Std.)
Legend
Parameters for material calculation
- Distance in mm c/c
- Keel/Profile in Rm/Sq.m
- Baffle in Rm/Sq.m
- 50
- 1
- 20
- 100
- 1
- 10
- 150
- 1
- 6.67
- 200
- 1
- 5

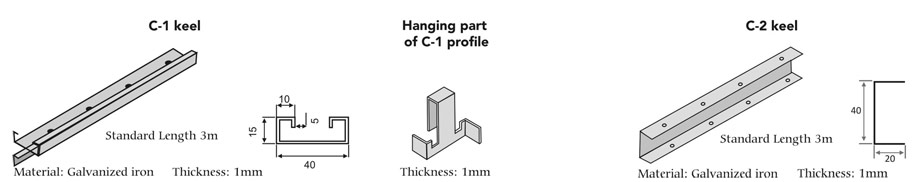

Guidelines for Installation
- 1. Hanging rod
- 2. C channel
- 3. Hanging part of C channel
- 4. Explosive bolt
- 5. Bolt and nut
- 6. C-1 keel
- 7. Hanging parts of C-1 keel
- 8. Body of baffle ceiling
- 9. Shaping rod
SCOPE OF APPLICATION
- Public Areas Like Railway Station, Subways, Airport, Bus Stations, Community Centre etc.
- Reception areas of Offices, corridors.
- Retail Stores, Shopping Malls, Lobbies of Big Buildings like Hotels etc.
