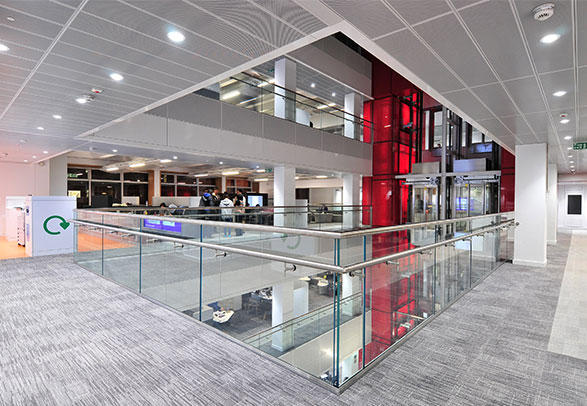

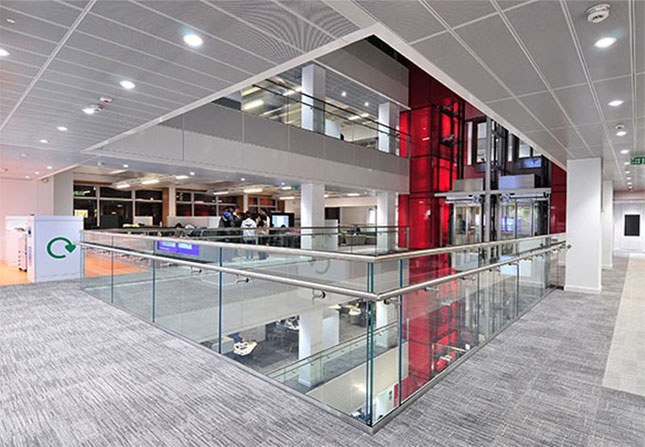

Clip-In

Product features

Easy to install and remove.
Compatible with most of the available Clip-In profiles.
Smooth Plain finish gives ceiling a rich look.
Hide all accessories along with the profiles and shows only a hairline gap between the tiles.
Easy Accessibility to plenum.
Combination of different sizes is possible by fixing the profiles at required distance, hence gives the designer a free hand to design the ceiling as per one's imagination.
Available in different patterns of perforations.
Acoustical properties can be achieved by using proper tissues and sound insulating material
Available in straight/bevelled edges.

TECHNICAL DETAILS

TILES

MATERIAL
SIZE
EDGE DETAILS
THICKNESS
FINISH

Galvanized Steel
300x300, 300x600

300x1200, 600x600

600x1200, 600x1800
Straight/Bevelled
0.40-0.80mm
Powder Coated, Fluorocarbon Painted, Film

Aluminium Alloy
300x300, 300x600

300x1200, 600x600

600x1200, 600x1800
Straight/Bevelled
0.50-1.00mm
Powder Coated, Fluorocarbon Painted, Film

Stainless Steel
300x300, 300x600

300x1200, 600x600

600x1200, 600x1800
Straight/Bevelled
0.40-0.80mm
Brush Finish, Mirror Finish

Special sizes can also be manufactured on order basis.

PERFORATED TILES ARE ALSO AVAILABLE -

PERFORATION

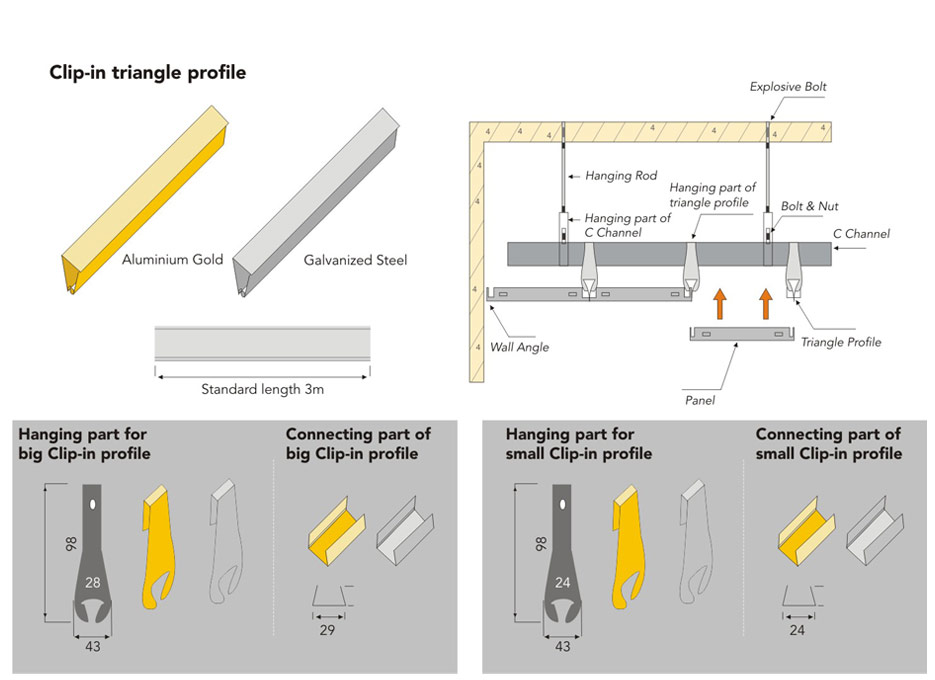

Suspension system

Clip In tiles are very much compatible with the concealed type of suspension system, making it flexible to create the different sizes modules of squares and planks, even a combination of squares and planks can be made.

Guidelines for Installation

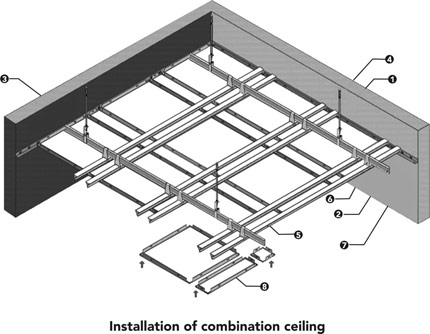

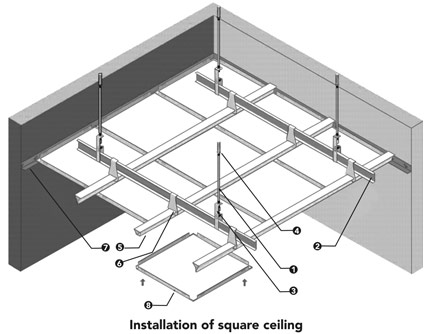

Combination & square ceiling

First level support structure is to be made by fixing "C" channels at the distance of 1200mm and second level structure to be formed by fixing Clip-in profiles at the distance of 600mm centre to centre in perpendicular direction to the "C" channels by the means of profile carriers. Tiles are to be clipped in to these Clip-in profiles one by one to finalize the ceiling.
