Slice Curtain

SLICE CURTAIN

PRODUCT FEATURES

  • Provide the ceiling an open, linear, clean and high tech look as per modern aesthetics.
  • Can be fixed and removed very easily for accessibility to plenum.
  • Compatible with most of the light fixtures available.
  • Serves as good ventilation system.
  • Provide flexibility to customize designs.
  • Available in 4 piece & 6 piece.

TECHNICAL DETAILS

Specification of slice curtain

  • Type of slice
  • Material
  • Height
    in mm (h)
  • Thickness
    in mm
  • Finish
  • length
    in mm (l)



  • 6pc



  • Aluminium Alloy

  • 100

    150

    200

  • 0.50-0.65

    0.50-0.80

    0.60-0.80




  • Powder Coated, PVDF



  • 3000-4000



  • 4pc



  • Aluminium Alloy

  • 100

    150

    200

  • 0.50

    0.50-0.65

    0.50-0.65




  • Powder Coated, PVDF



  • 3000-4000
Legend

Parameters for material calculation

  • Distance in mm c/c
  • Keel/Profile in Rm/Sq.m
  • Slice in Rm/Sq.m
  • 50
  • 1
  • 20
  • 100
  • 1
  • 10
  • 150
  • 1
  • 6.67
  • 200
  • 1
  • 5

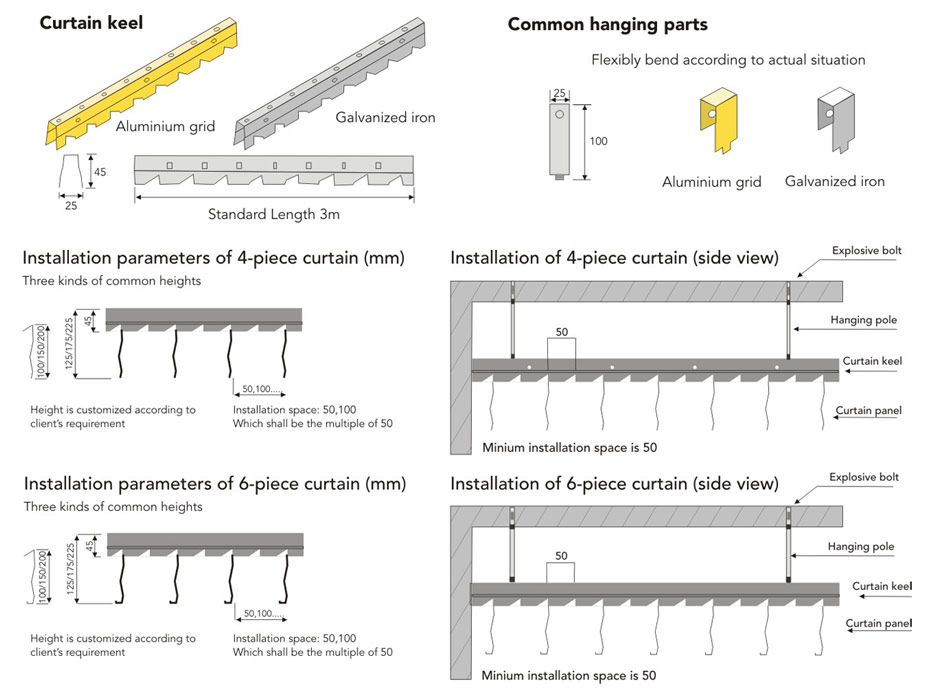

Guidelines for Installation

Slice Curtain Ceilings

4 Pc Slice Curtain Installation

  • 1. Hanging pole
  • 2. 38 main keel
  • 3. Hanging parts of 38 main
  • 4. Explosive bolt
  • 5. Common hanging parts
  • 6. Curtain keel
  • 7. Curtain panel

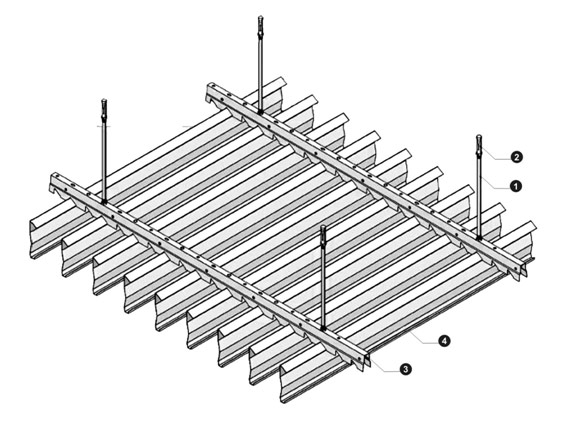

6 Pc Slice Curtain Installation

  • 1. Hanging pole
  • 2. Explosive bolt
  • 3. Curtain keel
  • 4. Curtain ceiling

SCOPE OF APPLICATION

  • Public Areas like Railway/Metro Station, Subways, Airport, Bus Stations, Community Centre etc.
  • Reception areas of Offices, Corridors
  • Retail Stores, Shopping Malls, and lobbies of Big Buildings like Hotels etc.
