PRODUCT FEATURES
- More stable ceiling as compared to others.
- Provide the ceiling a linear, clean and sleek look as per modern aesthetics.
- Compatible with most of the light fixtures available.
- Can be used in combination of two different width strips, making the ceiling more attractive.
- Provide flexibility to customize designs.
- Available in R&C type panels.
TECHNICAL DETAILS

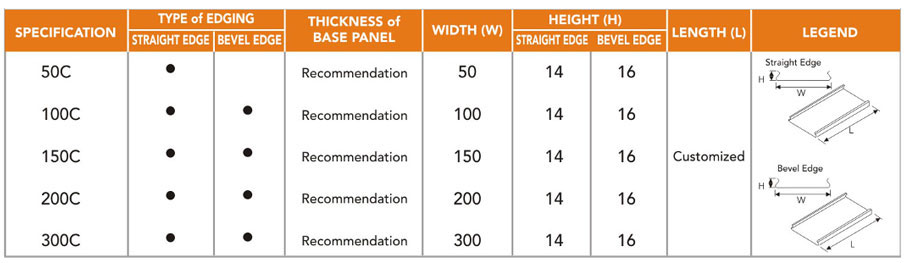

Specification of C-Shaped strip
Material: Aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements.
Surface: Powder coating (ordinary powder, polyster), rolling, laminating, metal anode oxidation treatment.
Coating: Plain panel or punching panel according to the actual requirements.
C-shaped ceiling provides the option of straight edge and bevel edge, which are available in different widths. These ceilings provide excellent solution for decorative purpose and are easy to install. Since the panels are connected tightly without gaps, the ceilings have a smooth look. The panels also provide an option of multiple colours which are available in pore or punching and can be chosen as per requirement.

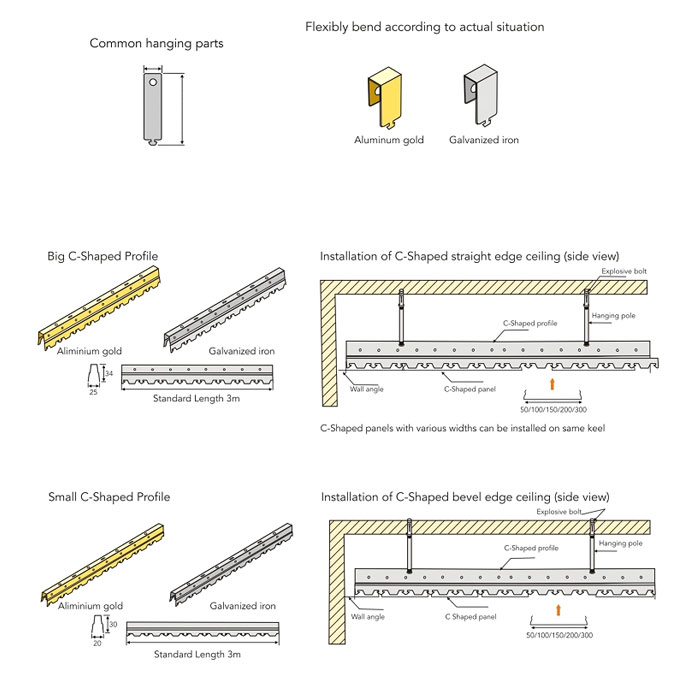

Guidelines for Installation
With upper suspending system (most standard installation method).

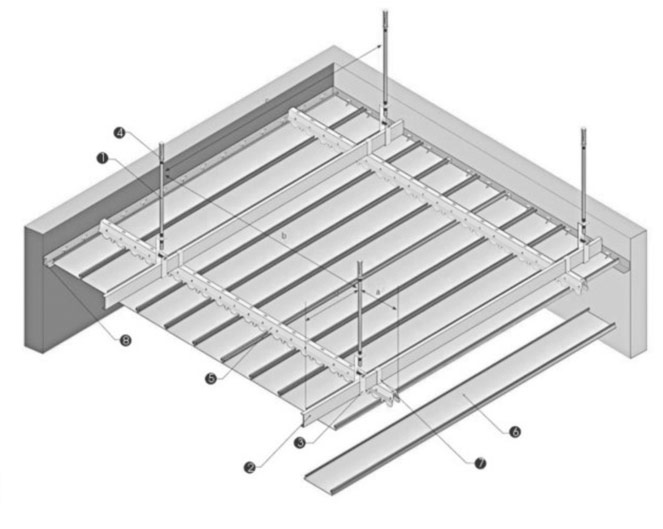

Installation parameters for C-shaped slat ceiling (mm)
a < 300 Distance between suspending rod to the rod to the end of keel
b < 1700 Distance between suspending rods
c < 1000 Distance between keels
d < 500 Distance between keel to the end of plate
- 1. Hanging pole
- 2. 38 main keel
- 3. Hanging part of 38 main keel
- 4. Explosive keel
- 5. C-shaped keel
- 6. C-Shaped panel
- 7. Common hanging part
- 8. Wall angle
SCOPE OF APPLICATION
- Very much suitable for commercial as well as domestic purposes such as Hotels, Hospitals, Offices, Bed Rooms, Kitchen, Toilet, etc.
