Lay-In
Product features
- Easy to install and remove.

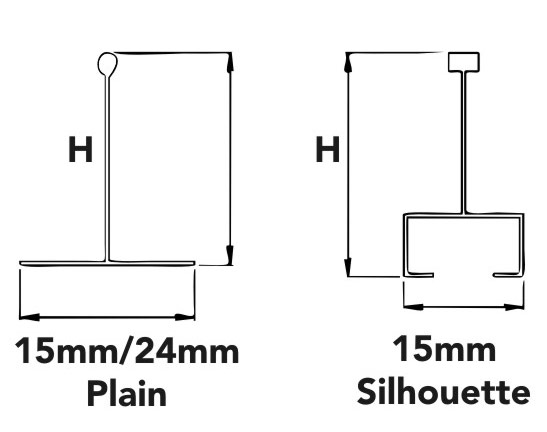

- Compatible with all available conventional GI "T" grid channels of 24mm/15mm, plain & grooved.
- Unique visibility with the powerful three dimensional effects.
- EasyAccessibility to plenum.
- Available in different patterns of perforations.
- Acoustical properties can be achieved by using proper tissues and sound insulating material
- Compatible lights and diffusers are available in the market.
- Available in straight/bevelled edges.
TECHNICAL DETAILS
TILES
- MATERIAL
- SIZE
- EDGE DETAILS
- THICKNESS
- FINISH
Galvanized Steel
600x600mm
300x1200mm
600x1200mm
Tegular-(T24)
ML-(T15)
0.40-0.80mm
Powder Coated, Fluorocarbon Painted, Film
Aluminium Alloy
600x600mm
300x1200mm
600x1200mm
Tegular-(T24)
ML-(T15)
0.50-1.00mm
Powder Coated, Fluorocarbon Painted, Film
Stainless Steel
600x600mm
300x1200mm
600x1200mm
Tegular-(T24)
ML-(T15)
0.40-0.80mm
Brush Finish, Mirror Finish
PERFORATED TILES ARE ALSO AVAILABLE -

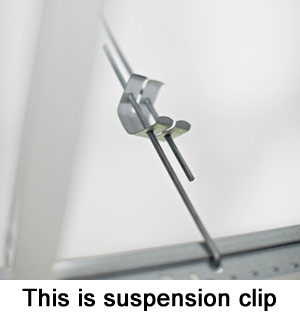

PERFORATIONSuspension system
Lay In tiles are very much compatible with all type of conventional suspension system of exposed T-grid channels, available in the market. Tile should be selected considering the face width of T grid.
Guidelines for Installation
SCOPE OF APPLICATION

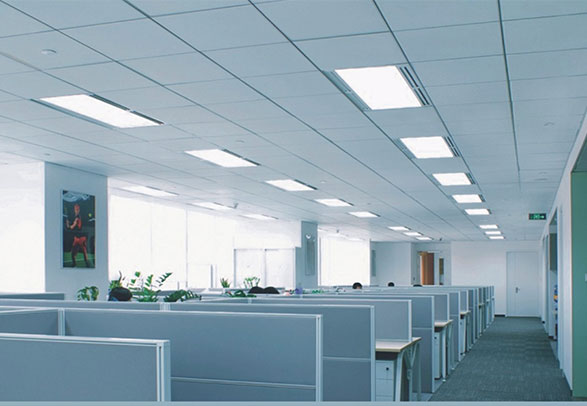

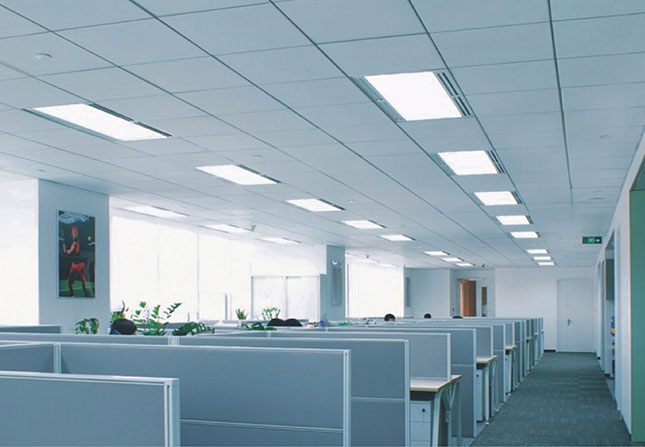

- Areas like Offices, Malls, Airports, Railway Stations, Hospitals, Lobbies of Commercial Buildings, etc.
