PRODUCT FEATURES
- Provide the ceiling an open, linear, clean and high tech look as per modern aesthetics.
- Can be fixed and removed very easily for accessibility to plenum.
- Compatible with most of the light fixtures available.
- Serves as good ventilation system.
- Provide flexibility to customize designs.
- Available in closed and open types.
- Also available in wooden finish.
TECHNICAL DETAILS
Specification of open baffle
- MATERIAL
- THICKNESS
- FINISH
- width in
mm (w) - height in
mm (h) - length in
mm (l)
Aluminium Alloy
0.70 to 1.5
Powder Coated, PVDF etc.25
30
50
100 (Spl.)
80
100
150
200
3000 (Std.)
Legend
Parameters for material calculation
- Distance in mm c/c
- Keel/Profile in Rm/Sq.m
- Baffle in Rm/Sq.m
- 50
- 1
- 20
- 100
- 1
- 10
- 150
- 1
- 6.67
- 200
- 1
- 5

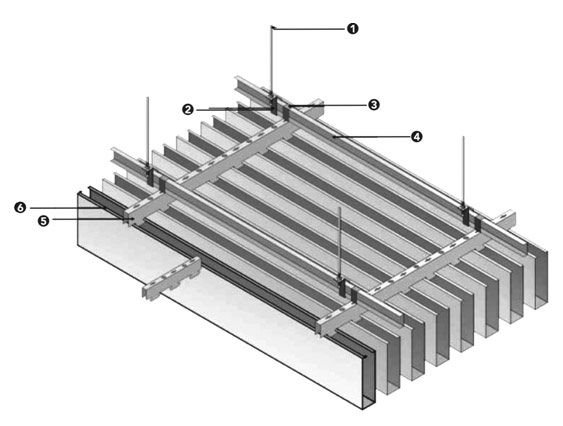

Guidelines for Installation
- 1. Explosive bolt & rod
- 2. Hanger for main C profile
- 3. Connecting part for baffle profile
- 4. Main C profile
- 5. Baffle profile
- 6. Baffle panel

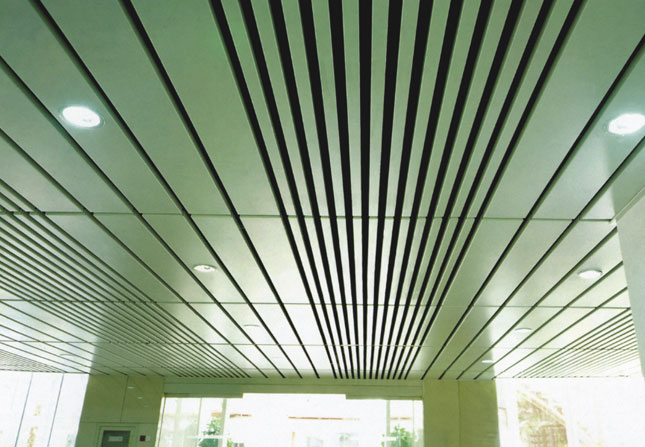

SCOPE OF APPLICATION

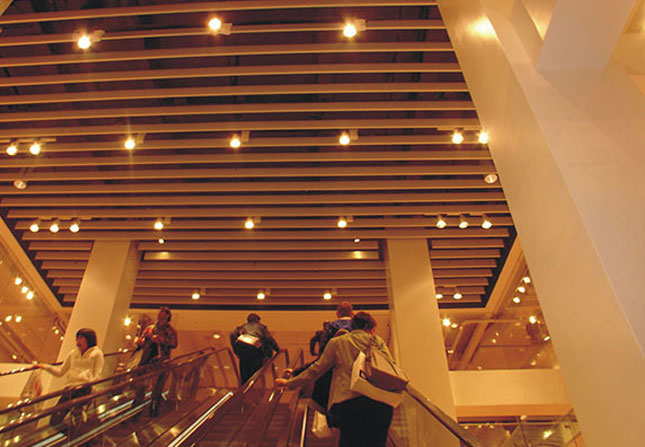

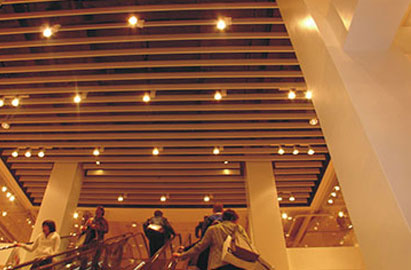

- Public Areas like Railway Station, Subways, Airport, Bus Stations, Community Centre etc.
- Reception areas of Offices, Corridors
- Retail Stores, Shopping Malls, Lobbies of Big Buildings like Hotels etc.
